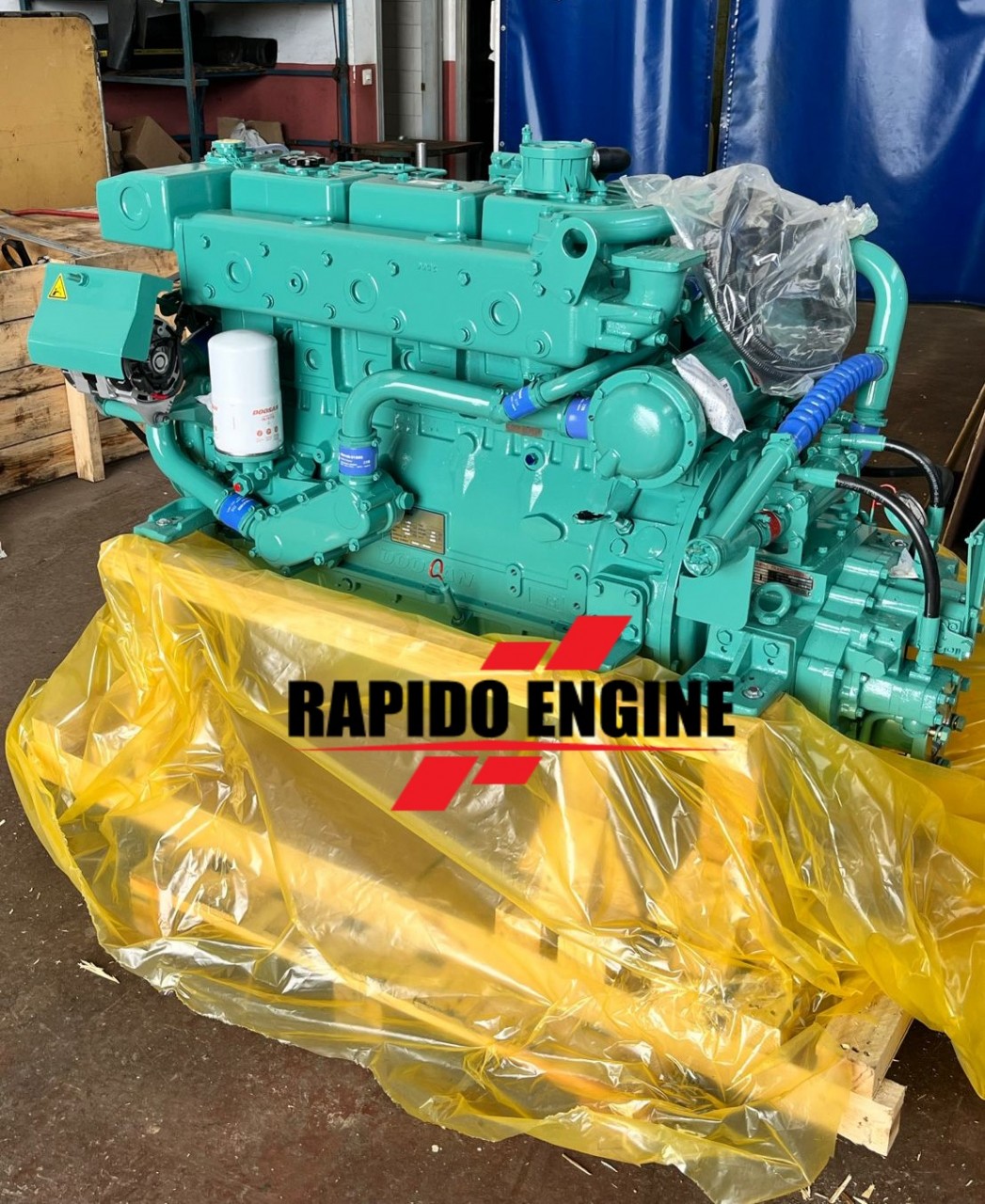

Available for sale New Doosan L136 Marine Diesel Engine 160 HP with affordable price US $7190.00. Only limited stock, so contact us immediately.


This Doosan L136 is a true heavy duty marine diesel engine. 8.1 Litre cubic capacity producing 160hp @ 2200RPM. Available in heat exchanger cooled or keel cooled configuration to suit your requirements.
Heavy Duty : Operation hours are unlimited per year, at average load is up to 90 %, at full load is up to 80 % Typical gearbox ratio: 2.5 ~ 6 (Fishing trawler, Tug boat, Pushing vessel, Cargo boat, Freighter, Ferry).

Specifications:

Engine type : 4 cycle, In line, direct- injection, water cooled, aspirated naturally
Rating output (B.H.P) PS(kW)/rpm : 160(118)/2200
Displacement cc : 8,071
Cylinder number - bore(φ) x stroke mm : 6 - φ111 x 139
Valve clearance at cold In / Ex : mm 0.3 / 0.3
Low idling rpm : rpm 725 ± 25
No load max. rpm : rpm below 2,420
Mean effective pressure kg/cm2 : 8.07
Mean piston speed m/sec. : 10.19
Compression ratio : 17.6 : 1
Firing order : 1 – 5 – 3 – 6 – 2 - 4
Compression pressure at 200 rpm kg/cm2 : 28 ( Initial condition )
Governor type of injection pump : Mechanical all speed (R.S.V)
Fuel consumption g/PS.h : 165
Fuel consumption lit / h : 32
Injection timing (B.T.D.C) degree : 22° ± 1°
Fuel inj. Nozzle opening pressure kg/cm2 : 224
Starting system : Electric Starting by starter motor
Starter motor capacity V- kW : 24 - 4.5
Alternator capacity V- A : 24 - 50
Battery V- Ah : 24 - 100
Cooling system : Indirect sea water cooling with heat exchanger
Cooling water capacity Max. / Min. lit : 25 / 23
Fresh water pump type : Centrifugal type, driven by V- belt
Sea water pump type : Rubber impeller type driven by gear
Lubricating oil (Engine) pan capacity lit : Max : 23, Min : 17 ( Engine total : 25)
Lubricating oil (Engine) pressure kg/cm2 : Full : 3.5, Idle : 1.5
Marine gear : DMT90AF (Dong-I)
Gear Ratio : 1.61 2.06 2.45 2.82 3.12 3.46
Direction of revolution crankshaft : Counter clockwise viewed from stern side
Direction of revolution propeller : Clockwise viewed from stern side
Engine size (L x W x H) without gear : 1,182 x 770 x 925mm
Engine size (L x W x H) with M. gear : 1,542 x 770 x 963mm
Engine dry weight without Gear : 743 Kg
Engine dry weight with M. gear : 928 Kg


Package Includes:

- Doosan L136 Heavy Duty Engine 160 HP
- Gearbox Dong–I DMT90AF
- Control Panel
- Wiring Harness
- Batteries
- Battery Cables
- Racor Fuel Pre-Filter
- Water Intake Strainer
- Tool Kit
- Overalls
- Filters For First Service
- Set Of Throttle Controls
- Tin Of Engine Paint
- Set Of Manuals
