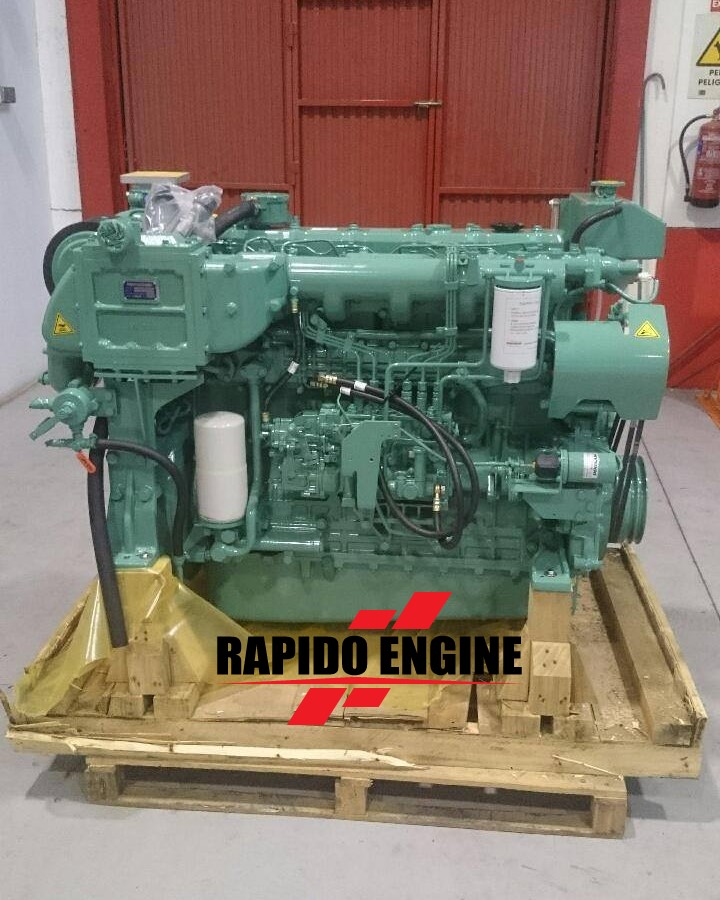

Available for sale New Doosan L126TIM Marine Diesel Engine 400 HP with affordable price US $13490.00. Only limited stock, so contact us immediately.


This Doosan L126TIM is a true medium duty marine diesel engine. 11.05 Litre cubic capacity producing 400hp @ 2100RPM. Available in heat exchanger cooled or keel cooled configuration to suit your requirements.
Medium Duty : Operation hours are up to 3,000 per year, at average load is up to 70 % At full load is (up to 30 % / 4hrs per 12 hour operation period) Typical gearbox ratio: 2 ~ 3.5 (Fishing boat, Pilot boat, Escort boat, Passenger boat, Ferry, Cruising vessel)

Specifications:

Engine type : 4 cycle, In line, direct- injection, water cooled with wet turbo charger & inter-cooler
Rating output (B.H.P) PS(kW)/rpm : 400(294)/2,100
Displacement cc : 11,051
Cylinder number - bore(φ) x stroke mm : 6 - φ123 x 155
Valve clearance at cold In / Ex : mm 0.3 / 0.3
Low idling rpm : rpm 725 ± 25
No load max. rpm : rpm below 2,310
Mean effective pressure kg/cm2 : 15.52
Mean piston speed m/sec. : 10.85
Compression ratio : 17 : 1
Firing order : 1 – 5 – 3 – 6 – 2 - 4
Compression pressure at 200 rpm kg/cm2 : 28 ( Initial condition )
Governor type of injection pump : Mechanical variable speed (R.Q.V)
Fuel consumption g/PS.h : 159
Fuel consumption lit / h : 77
Injection timing (B.T.D.C) degree : 14° ± 1°
Fuel inj. Nozzle opening pressure kg/cm2 : 1st : 160 , 2nd : 220
Starting system : Electric Starting by starter motor
Starter motor capacity V- kW : 24 - 6.0
Alternator capacity V- A : 24 - 50
Battery V- Ah : 24 - 150
Cooling system : Indirect sea water cooling with heat exchanger
Cooling water capacity Max. / Min. lit : 24 / 19
Fresh water pump type : Centrifugal type, driven by gear
Sea water pump type : Rubber impeller type driven by gear
Lubricating oil (Engine) pan capacity lit : Max : 25, Min : 19 ( Engine total : 27)
Lubricating oil (Engine) pressure kg/cm2 : Full : 3.5, Idle : 1.2
Marine gear : DMT144H (Dong-I )
Gear Ratio : 1.83 2.09 2.51 3.08 3.43
Direction of revolution crankshaft : Counter clockwise viewed from stern side
Direction of revolution propeller : Clockwise viewed from stern side
Engine size (L x W x H) without gear : 1,242 x 854 x 1,073mm
Engine size (L x W x H) with M. gear : 1,683 x 854 x 1,159mm
Engine dry weight without Gear : 1,060 Kg
Engine dry weight with M. gear : 1,345 Kg


Package Includes:

- Doosan L126TIM Medium Duty Engine 400 HP
- Gearbox Dong–I DMT144H
- Control Panel
- Wiring Harness
- Batteries
- Battery Cables
- Racor Fuel Pre-Filter
- Water Intake Strainer
- Tool Kit
- Overalls
- Filters For First Service
- Set Of Throttle Controls
- Tin Of Engine Paint
- Set Of Manuals
