Available for sale New Doosan L086TIH Marine Diesel Engine 285 HP with affordable price US $10790.00. Only limited stock, so contact us immediately.

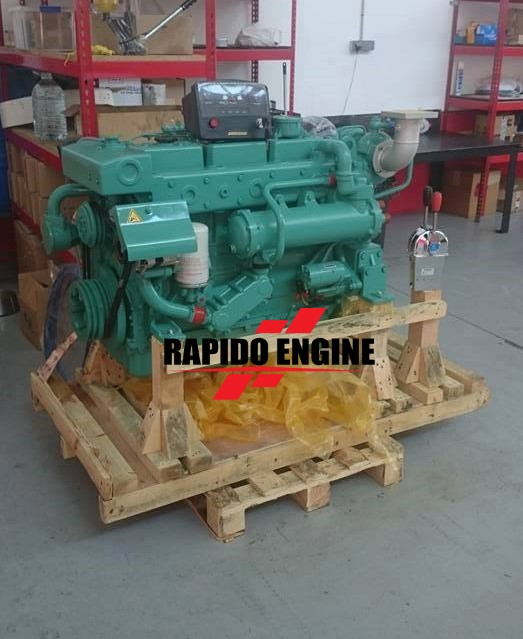

This Doosan L086TIH is a true heavy duty marine diesel engine. 8.1 Litre cubic capacity producing 285hp @ 2100RPM. Available in heat exchanger cooled or keel cooled configuration to suit your requirements.
Heavy Duty : Operation hours are unlimited per year, at average load is up to 90 %, At full load is up to 80 %, Typical gearbox ratio: 2.5 ~ 6 (Fishing trawler, Tug boat, Pushing vessel, Cargo boat, Freighter, Ferry).

Specifications:

Engine type : 4 cycle, In line, direct- injection, water cooled with wet turbo charger & inter-cooler
Rating output (B.H.P) PS(kW)/rpm : 285(210)/2,100
Displacement cc : 8,071
Cylinder number - bore(φ) x stroke mm : 6 - φ111 x 139
Valve clearance at cold In / Ex : mm 0.3 / 0.3
Low idling rpm : rpm 750 ± 25
No load max. rpm : rpm below 2,310
Mean effective pressure kg/cm2 : 15.14
Mean piston speed m/sec. : 9.73
Compression ratio 16.7 : 1
Firing order : 1 – 5 – 3 – 6 – 2 – 4
Compression pressure at 200 rpm kg/cm2 : 28 ( Initial condition )
Governor type of injection pump : Mechanical all speed (R.S.V)
Fuel consumption g/PS.h : 152
Fuel consumption lit / h : 52
Injection timing (B.T.D.C) degree : 15° ± 1°
Fuel inj. Nozzle opening pressure kg/cm2 : 224
Starting system : Electric Starting by starter motor
Starter motor capacity V- kW : 24 - 4.5
Alternator capacity V- A : 24 - 50
Battery V- Ah : 24 - 100
Cooling system : Indirect sea water cooling with heat exchanger
Cooling water capacity Max. / Min. lit : 27 / 25
Fresh water pump type : Centrifugal type, driven by V- belt
Sea water pump type : Rubber impeller type driven by gear
Lubricating oil (Engine) pan capacity lit : Max : 23, Min : 17 ( Engine total : 25)
Lubricating oil (Engine) pressure kg/cm2 : Full : 3.5, Idle : 1.2
Marine gear : DMT 110A ( Dong – I )
Gear Ratio : 1.77 2.09 2.42 2.82 3.19
Direction of revolution crankshaft : Counter clockwise viewed from stern side
Direction of revolution propeller : Clockwise viewed from stern side
Engine size (L x W x H) without gear : 1,182 x 825 x 962mm
Engine size (L x W x H) with M. gear : 1,552 x 825 x 1,062
Engine dry weight without Gear : 790 Kg
Engine dry weight with M. gear : 1,015 Kg


Package Includes:

- Doosan L086TIH Heavy Duty Engine 285 HP
- Gearbox Dong–I DMT 110A
- Control Panel
- Wiring Harness
- Batteries
- Battery Cables
- Racor Fuel Pre-Filter
- Water Intake Strainer
- Tool Kit
- Overalls
- Filters For First Service
- Set Of Throttle Controls
- Tin Of Engine Paint
- Set Of Manuals
