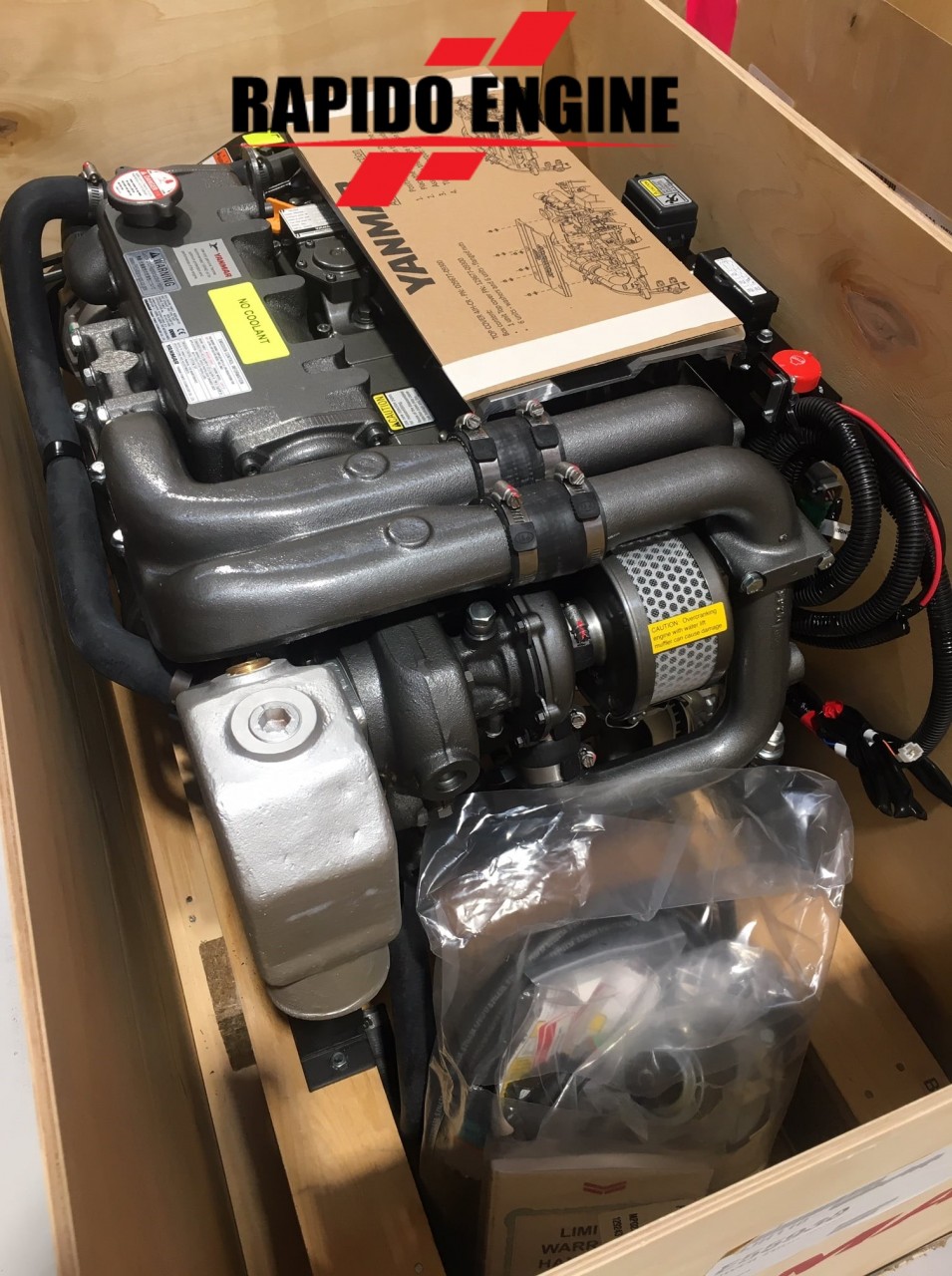

Available for sale New Yanmar 4JH110 Marine Diesel Engine 110 HP with affordable price US $6590.00. Only limited stock, so contact us immediately.


YANMAR engines have become the global standard in sailboat and small craft propulsion. Bringing common rail technology to smaller applications, YANMAR exclusively provides the benefits of fuel efficiency, added power, and cleaner operation.

With 4 power ratings across one design, the 4JH-CR engine is the perfect solution to fit across a wide variety of boats sizes and applications. And with a similar footprint to previous models and competition alike, it is the ideal choice for repowers.

4 Cylinder, 2-liter diesel engine, Turbocharged, Gears - KM4A2 / KMH4A / ZF25A / ZF30M

Product Information

JH Series 28.7–92kW (39–125HP) Three and four-cylinder direct injection diesels with heat exchanger cooling. Choices of natural aspiration, turbocharged and turbo/aftercooler models, with straight drive or angle drive transmissions. Smaller horsepower models are also offered with Saildrive units.

Specifications:

Rated Output : 80.9 kW / 110 mhp
Rated Speed : 3200 rpm
Displacement : 2 L / 122 cu. in
No. of cylinders : 4 cylinders
Cylinder Bore x Stroke : 84 mm x 90 mm / 3.31 in x 3.54 in
Combustion system : Direct Injection, Bosch Common Rail System
Aspiration : Turbocharged & Intercooled
Alternator : 12V - 125A
Dry weight without gear : 229 kg / 505 lbs
Dimensions : 909 mm x 613 mm x 675 mm
Controls : Mechanical (optional - VC10 system)
Certifications : RCD 2, EPA Tier 3, EPA Tier 3C, BSO II, EMC, SOLAS


Package Includes:

- New Yanmar 4JH110 engine
- Gearbox: KM4A2 / KMH4A / ZF25A / ZF30M
- High-riser Mixing Elbow
- Sidemount Control Head
- NMEA 2000 Engine Monitoring System
- Hot Water Kit
- Alternator 12V – 125A
- Seawater pump rear mounted
- B25 panel
- Flexible mounts
- Mechanical throttle sensor
- Fuel pre-filter with water separator
- Fresh water expansion tank
- Belt safety cover
- Extension wire harness 4m
- On-board spare parts kit (Oil filter, fuel filter, impeller & O-ring)

Optional Accessories

- High-riser mixing elbow [instead of L-elbow]
- Secondary alternator 12V – 125A or 24V – 60A
- Seawater pump front mounted
- C35 panel
- Extension harness [3m, 5m, 10m]
- Second station
- Sidemount control head
- VC10 Vessel Control System
- NMEA2000 Engine monitoring system
- Semi 2-pole
- SOLAS including Certificate [factory fit only]
- Opposite dipstick
- Hot water kit with cocks
- Extension saildrive leg [75 mm]
- Propeller cone nut kit SD60
- On-board spare parts kit
