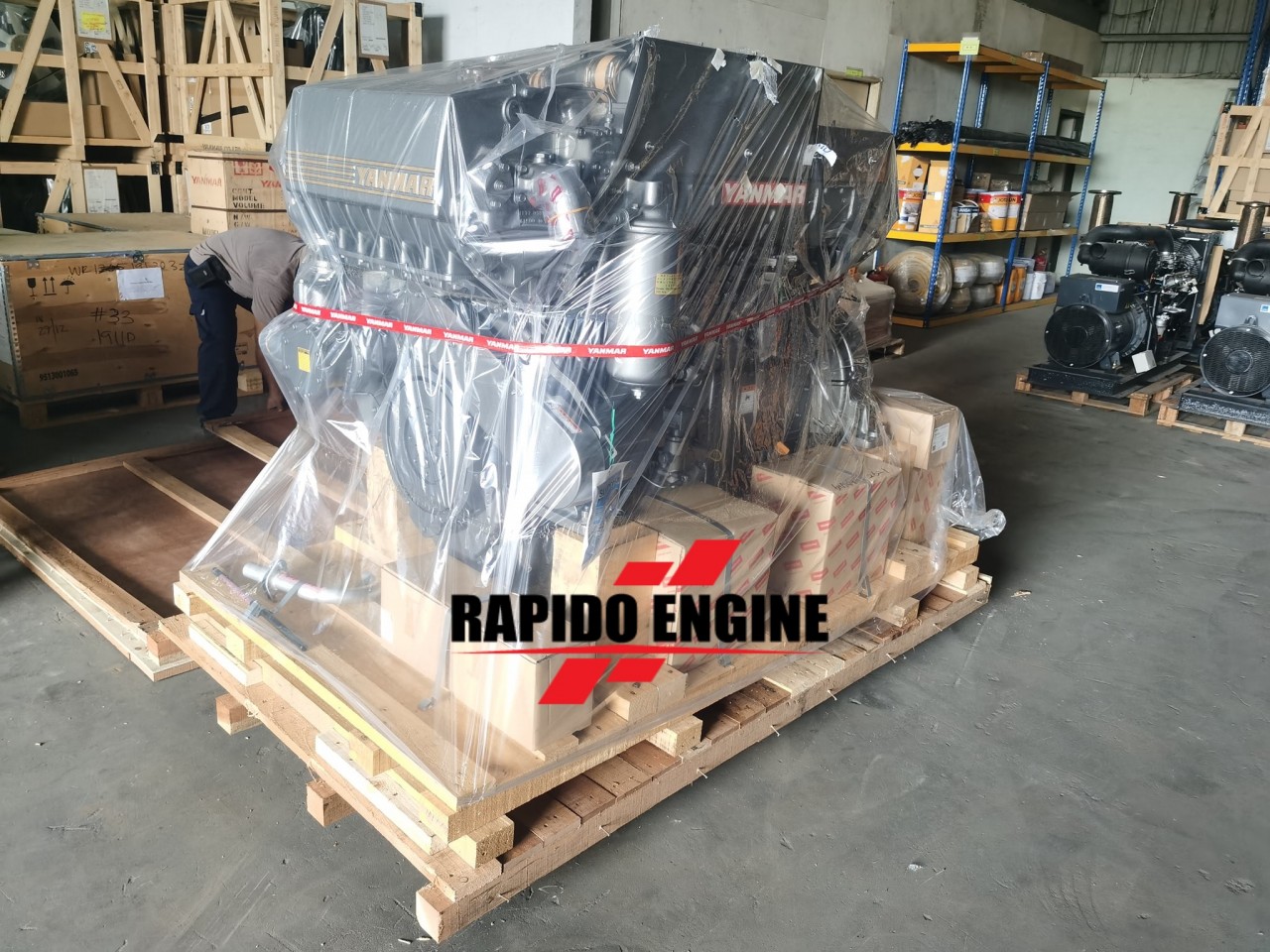

Available for sale New Yanmar 6HA2M-WDT Marine Diesel Engine 405 HP with affordable price US $19350.00. Only limited stock, so contact us immediately.


Getting the most boat performance out of the least amount of fuel is one of the top priorities of today’s work boat owners. Which is why Yanmar has introduced this new marine diesel engine, specifically built for fuel-saving, ocean-going service. It is a no-nonsense engine built up of quality components developed from Yanmar’s vast experience with marine engines, and the needs of the persons who run them.

PRINCIPAL DATA

Number of Cylinder : 4
Cylinder Bore : 130mm
Stroke : 165mm
Displacement [lit] : 13.140
Combustion system : Direct injection
Aspiration : Natural aspirated

Specifications:

Rating : M
Rated output [kW(mhp)/rpm] : 298(405)/1950
Emission : IMO Tier II
Starting system : Electric starting motor (24V 6.0kW)
Cooling system : Heat exchanger
Size of flywheel housing and flywheel : SAE #1 and 14 in.
Dry mass (without marine gear) [kg] : 1350
Dimensions (L×W×H) [mm] : 1585mm × 1036mm × 1260mm

Marine gear specifications:

Model : YX-120L
Type : Hydraulic multi-disc clutch
Reduction ratio (Ahead) : 3.46 4.00 4.59
Direction of rotation (propeller shaft) : Clockwise or counterclockwise
Dry weight [kg] : 411

Package Includes:

- Yanmar 6HA2M-WDT Engine 405 HP M-Rating
- Kanzaki YX-120L
- D-Type Instrument Panel
- Warranty Card
